Bosch - 44mm DBW (Drive-By-Wire) Throttle Body 0280.750.137
£120.00
£120.00
In stock
P/N
0280.750.137
Bosch - 44mm DBW (Drive-By-Wire) Throttle Body 0280.750.137
Bosch DBW Throttle bodies are the go to Electronic throttle body for motorsport applications, if you are converting your vehicle from cable throttle to DBW (Drive By Wire) these are the best on the market. These throttle bodies have dual potentiometers in built for maximum safety. Drive by wire in Motorsport has many benifits, some noteable include Flat shift, Autoblip, Traction control to name a few.
Features & Benefits
- Dual Potentiometer redundancy
- OE quality and performance
- Max Current 10A
- 0-5V Throttle Position Sensors
| Model | Bosch 44mm DBW | Bosch 68mm DBW | Bosch 74mm DBW | Bosch 82mm DBW |
| Bore Diameter | 44mm | 68mm | 74mm | 82mm |
| Connector | D261.205.358-01 | D261.205.358-01 | D261.205.358-01 | D261.205.358-01 |
| Flange Diameter | 50mm | 84mm | 90mm | |
| Bolt Pattern | 50mm x 50mm | 65mm x 65mm | 70mm x 70mm | 75mm x 75mm |
| Weight (kg) | 0.90 | 0.95 | 1.00 | 1.10 |
| Pin | Abbreviation | Description |
| Pin 1 | M- | Negative Supply for Motor |
| Pin 2 | IPM / UIP | Sensor Ground (Rising) / Sensor Supply (Falling) |
| Pin 3 | UIP / IPM | Sensor Supply (Rising) / Sensor Ground (Falling) |
| Pin 4 | M+ | Positive Supply for Motor |
| Pin 5 | IP2 | Sensor 1 Signal |
| Pin 6 | IP1 | Sensor 2 Signal |

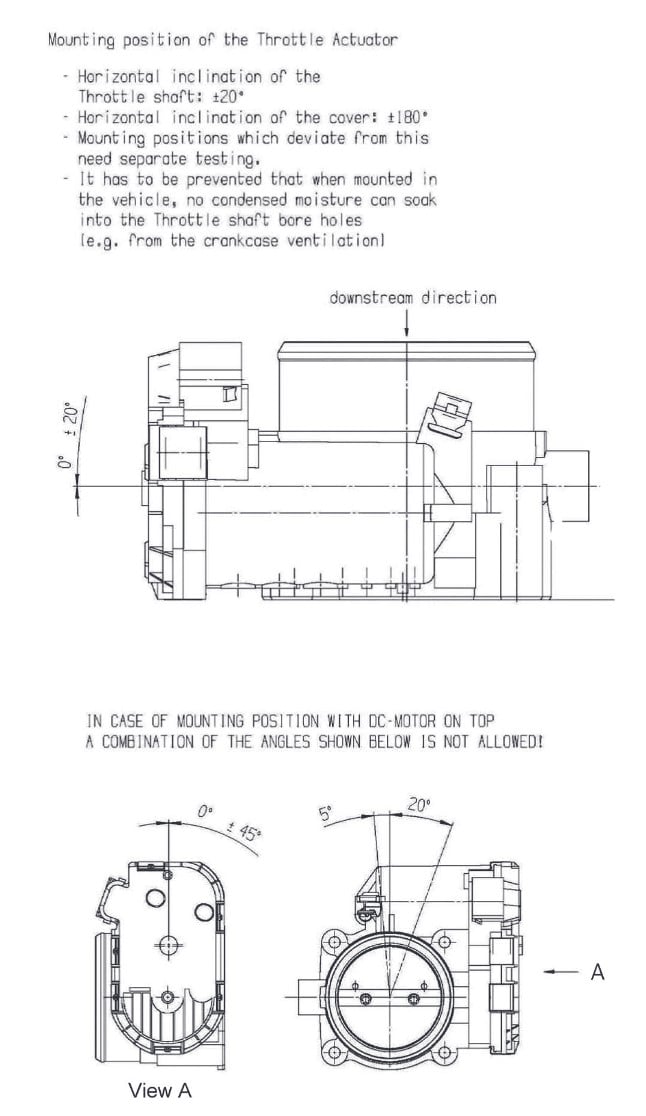

Mounting Position
ATTENTION
- Please double check you are ordering the correct size.
- Requires Suitable DBW Throttle Pedal / Linear Potentiometer to Operate
| Manufacturer | Bosch |
|---|
